Description
"Super Bright" DC12V 336LEDs/m 5M 8mmCOB LED Light Strip with
Flexible Tip Compared with traditional SMD light strips, COB light
strips have precise light-emitting units to prevent the light from
stopping midway, creating a bright, soft, and uniform effect of
light .
COB has a soft and dense flat surface that can be bent freely. The
strong adhesive on the back makes it easy to install on the wall or
any smooth, clean surface. You can also use scissors to cut to any
length along the cutting point or work fine. Safe, energy-saving
and durable: COB monochrome series LED light strips are more
energy-saving. Dimmable and durable, with a lifespan of over 50,000
hours. We offer a 2-year worry-free warranty and 24-hour customer
service. The light is softer and more uniform than ordinary LED
light strips, and safer for the eyes. High color rendering index
and good lighting effect. It does not contain ultraviolet or
infrared rays, mercury, lead and other heavy metals, and is
environmentally friendly. The light decay rate is less than 3%
after 1000 hours and less than 30% after 3500 hours.
Features
Chip-on-board design, up to 336 chips on single meter reaches even and uniformlighting.
Only 2.97mm distance between chips, 62.5mm cutting length.
New circuit design to reduce brightness difference from beginning and ending.
Double layyer 2oz PCB, balancing voltage dropping, heat dissipation and flexibility
Dimensions

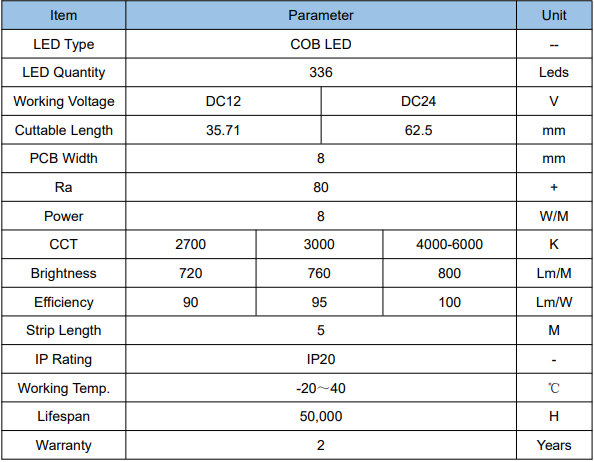

Technical parameters

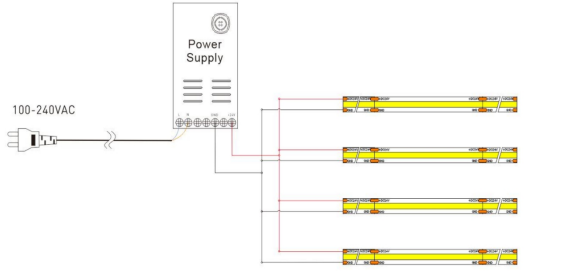

Installation Ways
The max running length is 5 meters, for over 5 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications
sed in linear lights as lighting source; used for indoor decorations.
Package
About US
Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.

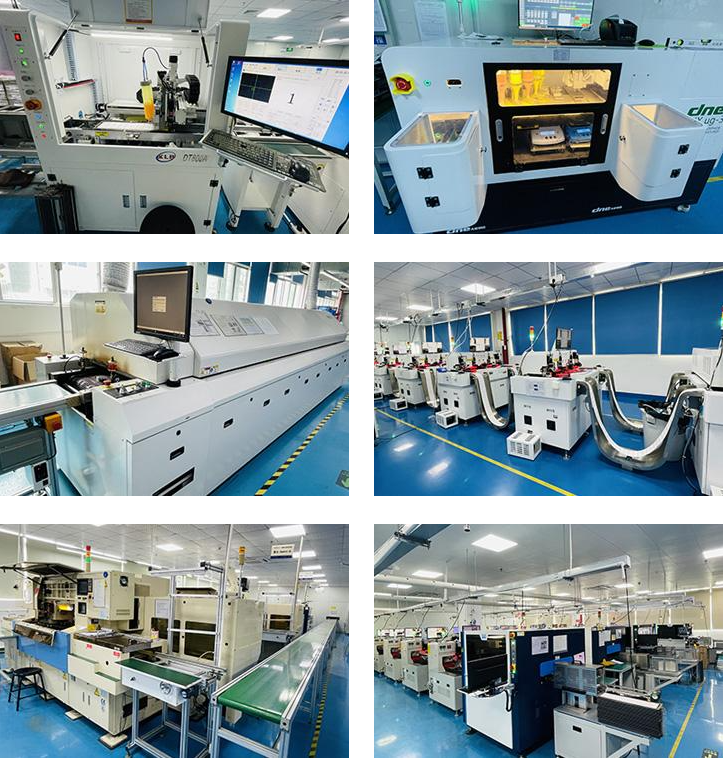

ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.
Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
|
|
