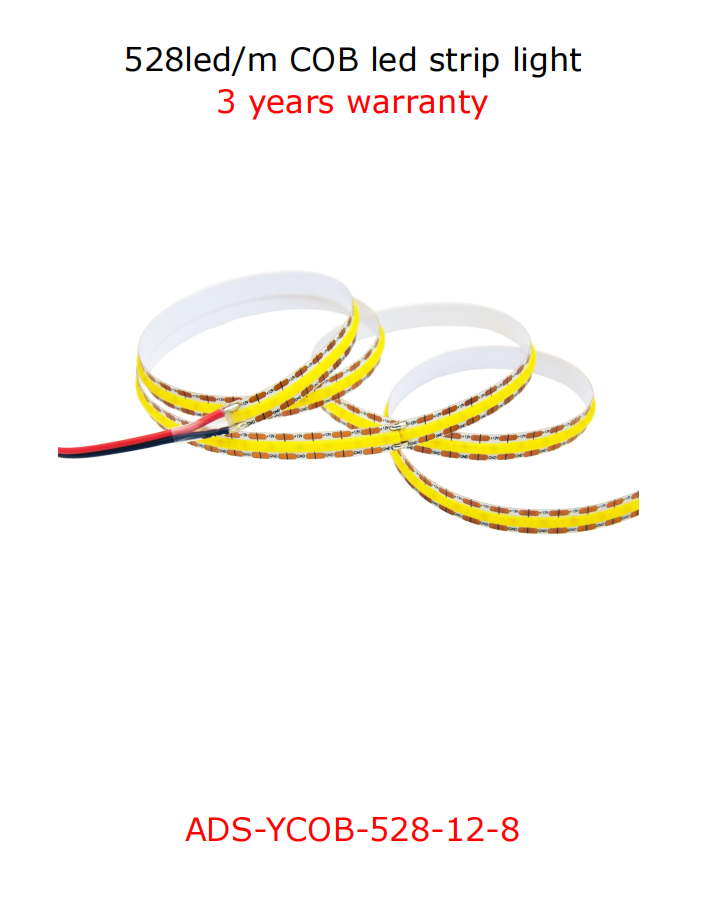

Free Cuttable LED Tape 528LEDs/M 8mm PCB Width COB LED Strip 3000W/4000K/6500K/Red/Green/Blue/Yellow

*Big beam angle,no dark area,flexible line source with good heat dissipation
*Inverted COB gold-free technology
*Ra>90,cuttable and re-connectable

Feature

Chip-on-board design, more chips on board reaches even and uniform lighting.
Up to 528 chips, only 1.89mm distance between chips.
Only 7.58mm cutting length, suitable for more applications.
Double layer 2oz PCB, balancing the voltage drop, heat dissipation and flexibility.
IP20/IP54/IP65/IP67 optional

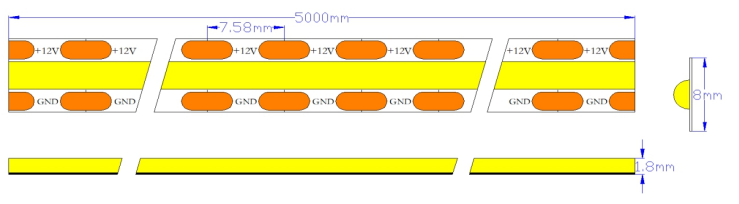

Dimensions

Product Parameter

528 chips per meter,10mm PCB width,no more worries about dark spot!
White/Warm White/Natural White/Cool white/Red/Green/Blue single color all available
Both 12V and 24V are available
180° beam angle, 50% wider lighting than SMD design
Even better heat sink than regular LED strip lights
Innovatory design,new cob design simply use the chips directly, makes the emitting unites
unprecedentedly close to each other and creates super even lighting performance.

Applications

--Linear Lighting,cove lighting,indirection lighting,back lighting
--Sign illumination,3D letters,AD boxes,light boxes
--Under cabinet,display case,accent decor,and automotive accents

Professional LED Strip Manufacturer

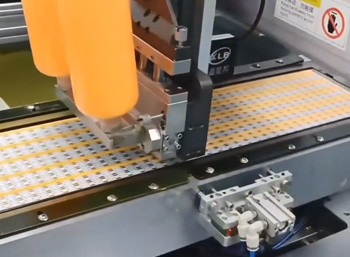

COB LED Strip Factory

ADLED Light is one of top-tier COB flexible LED strip manufacturer in China. Our R&D team develop 3 types of LED strips each month. You can get different types of LED strips with 3 to 5 years warranty. All our flexible COB LED strip are of UL, CE, RoHS certified products, guarantee 3 or 5 years warranty.

What is COB LED Flexible Strip Lights?

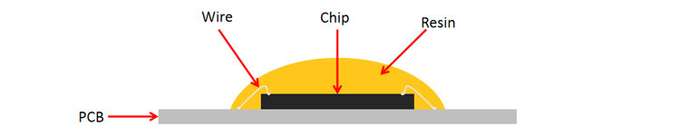

COB LED strip lights means directly package chips on the circuit board (PCB), then drop a layer of glue mixed with phosphor powder on the surface of chips.

Manufacturing LED COB strip light eliminates the wire bonding process of SMD chips and soldering brackets compared with SMD LED strip lights production, it greatly improved the stability of the product and better heat dissipation.

COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip, such as perfect linear lighting effect, more flexibility, etc. With advanced craft, it can produce more perfect CRI and color temperature values.

Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of LED strip accessory, 10mm LED strip connector, 8mm LED strip connector for 528chips COB LED strip.

Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED dimmer.

Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for different lighting applications.

Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate heat better and prolong the life of the COB light strip.

Who We Are

Founded in 2013, ADLED is a high-end LED strips and LED modules supplier headquatered in Shenzhen, China.

ADLED has 300 staff working in a 12000sqm dust-free workshop, 15 professional R&D members, 30 experienced QC members to provide customization & quality products.

Our wide range of LED strips and LED modules includes high CRI LED strip, COB LED strip, single color LED strip, RGB LED strip, tunable white LED strip, bendable LED strip, waterproof LED strip, neon LED strip, light bars for LED fabric frame, bar light for LED light box, LED module lights, SMD LED module, LED strip connector, LED strip profile, LED strip controller, and more.
