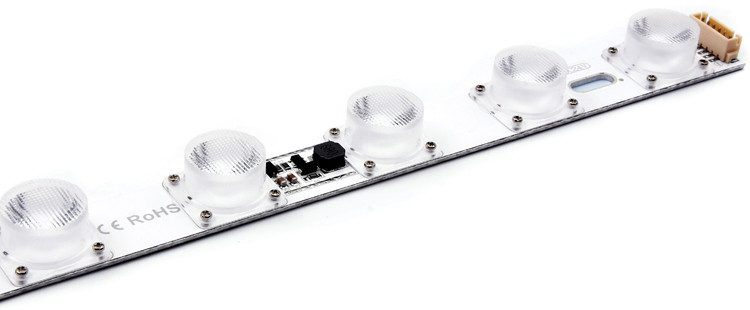

Edge Lit LED Strip Light Rigid Bar 1818 24 Voltage for SEG Fabric Frames light box

Benefits of Light Bars for LED Fabric Frame

1. Best optical lens for LED bar lighting

We are proud of bar light LED optical lens, 15x45° beam angle, it emits the best lighting in light box signs.

2. IP20 & IP67
IP20 non waterproof interior LED light bar suitable for indoor light sign board.
IP65 waterproof 6 LED light bar suitable for 2 sided LED outdoor signs.

3. Easy install in custom light up signs for business

IP20 type: Male & female quick connectors easy plug & play in customizable LED sign. You can install LED light bar for home with back adhesive to the aluminum frames of LED light box.

IP65 type: You can connect LED Power Supply with DC quick connectors, fix white LED light bar with mouting clips to the frames of outdoor lighted sign boxes for businesses.

4. Genesis Photonics Lamps
Our plug in LED light bar powered by Genesis SMD 1818, all approved UL, CE, ROHS certificates, guarantee 5 years warranty.

5. 1.6mm Aluminum PCB Board
We use 1.6mm thick aluminum board for led lighting bars , to make sure good quality products and better heat sinking.

6. High Lumen LED box lights
15W super bright LED light bar with 1800lm, suitable for 3-5m emitting distance large LED sign.

LED Light Bar Manufacturers

We are proud of OEM & ODM services for china LED light bar since 2016, the first factory to develop LED.light bar in China.

Top distributors & LED light box manufacturers in Europe & USA speak highly our LED bar light for home.

We always stock LED lighting bar materials, standard products can ship out in 7days.

What is Light Bars for LED Fabric Frame?

Light Bars for LED Fabric Frame also be defined LED sign lighting strips, LED sign cabinet lighting, light box LED module, light box with LED lights.

Various lights LED bars available.
Different beam angles: 15x45°, 10x30°, 10x60° LED light strip bar for seg lightbox
Different LEDs: SMD 3030, SMD 3535, SMD 1818 good LED light Bar brands for lighted sign cabinet
Different sizes: 1m, 0.5m, 0.3m, 0.4m etc
Different colors: Warm white, Natural White, White, Cold White, RGB, RGBWW, RGBW LED light bars for sale
Different voltage: 12volt LED light Bar, 24 LED light Bar
Different waterproof grade: IP20 IP67 optional

sign light bar create even illumination in fafabric seg lightbox, saving labor cost in installation for illuminated light sign box.

Light Bars for LED Fabric Frame Specification:

Light Bars for LED Fabric Frame Application:

• Exhibit Trade Show Displays
• Fabric Light Box
• LED Light Box Frame
• SEG Lightbox
• Wall Light Box
• Fabric Face Light Box
• LED Fabric Light Box
• Lighting Fabric
• SEG Systems

Light Bars for LED Fabric Frame FAQ
Q: Which lighting project use your LED light bars?
Our LED light bars used in Olympic Games light boxes, Coca Cola poster box, Metro LED light frames, Airport LED fabric frame, etc.

Q: How to install LED light bars in double-sided fabric frame displays?
Step 1 : Caculate LED light bars quantity and how much LED power supply
Step 2: Clean the surface of aluminum frame light box
Step 3: Install LED light bars to two sides or four sides of lightbox
Step 4: Connect LED power supply with LED bar module

Q: How many piece (1m LED bar) can connect in parallel?
You can connect maximum 3pcs LED light bar.

Q: Can I cut LED light bars?
Yes, you can cut LED light bars at the soldering point.
DC12V edge lit LED bar can be cut each 1LED
DC24V edge lit LED bar can be cut each 2LEDs
