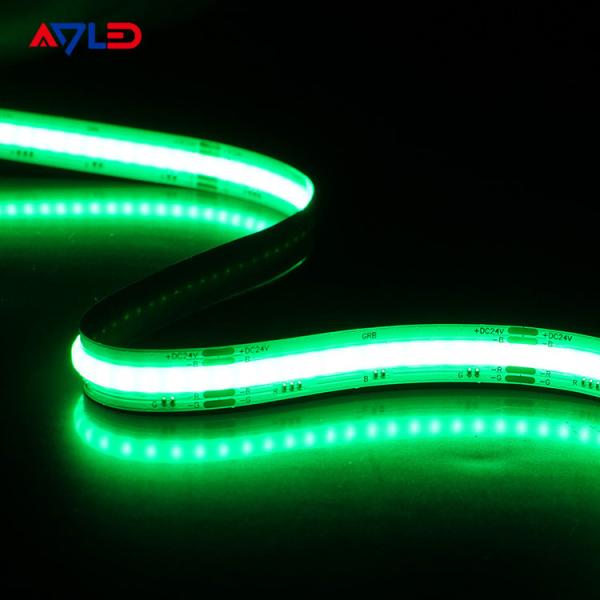

15W COB LED Strip IP67 Waterproof RGB Smart No Spot Light
Benefits of RGB COB LED Strip
1. High Density LED Strip RGB
Hot spot lights of traditional LED strip RGB are bad for eyes, chip on board LED strip emit uniform brightness, shines in one straight line, it emits
perfect lighting even without LED channels.
2. More Flexible Light Strip
810 chips combines in one meter RGB dotless LED strip lights, the space between two chips is ultra narrow, you can bend
arbitrarily the rgb strip lights without any damages.
3. RGB Color Changing LED Strip Lights
High density LED strip brings multi colors, you can select various colors you need, a
smart light strip for game room, bar, hotel, etc.
4. 180° Beam Angle |
|
5.Types of RGB COB LED Light Strip
The RGB light strips of ADLED have 12v addressable RGB LED stripe, 24v RGB LED tape, RGBWW LED strip, RGB COB LED strip, LED RGB CCT strip, WS2811 LED strip, RGB COB LED strip.
LED Strip Supplier
All our best light strips are of UL, CE, RoHS certified products, guarantee a 3 or 5 years warranty. |  |
What is High Density RGB LED Strip?
RGB COB LED light strip means directly package chips on the circuit
board (PCB), then drop a layer of glue mixed with phosphor powder
on the surface of chips.
Manufacturing ultra high density RGB LED strip liminates the wire bonding process of SMD chips and soldering
brackets compared with smart LED strip lights production, it greatly improved the stability of the product and
better heat dissipation.
COB LED Strip Specifications:
| Model | ADS-YCOB-840RGB |
| LED type | COB (Chip On Board) |
| LEDs per metre | 840 |
| Operating voltage | DC24V |
| Watts per metre | 15W |
| Color | RGB |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 10mm |
| Cut points | 33.33mm(1.31'') for 12V |
| Beam angle | 180° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS/ErP |
| Package | 5m(16.4ft) per roll |
| Color changeable | Color jumping or gradient controlled by LED COB tape controller |
COB LED Strip Application:
• Signage and Advertisement Lighting • Christmas Lighting
• Showers Lighting • Under Rooftops
• Perimeter Lighting • Living Room Lighting
• Stage Lighting • Behind Bed Lighting
• Store display Lighting • Above Cabinet Lighting
• Soffit Lighting • Behind Shelving Lighting
• Bike Design Lighting • Under Cabinets
• Art Lighting • Mirror backLighting
• Vehicle Lighting • Hotel Room Accent Lighting
COB LED Strip FAQ:
Q: Why more and more people choose COB LED tape?
COB LED tape has many big advantages compared with SMD LED strip,
such as perfect linear lighting effect, more flexibility, etc. With
advanced craft, it can produce more perfect CRI and color
temperature values.
Q: Can you link LED strip lights?
Yes, you can link LED strip lights easily. We can provide lots of
LED strip accessory, 10mm LED strip connector, 8mm LED strip
connector for 528chips COB LED strip.
Q: Is COB LED strip dimmable ?
Yes, you can dim these dimmable COB LED strip with a simple LED
dimmer.
Q: Can you make waterproof COB LED strip?
Yes, we can make waterproof COB LED strip IP65, IP67, IP68 for
different lighting applications.
Q: Do COB LED strip need aluminum profile for heat dissipation?
Yes, LED aluminum profile can help COB light strip to dissipate
heat better and prolong the life of the COB light strip.
|
|
