High-end LED Strip Lights Manufacturer | LED Channel Letter & Light Box Solutions | ADLED Light
4 Years
| Ask Lasest Price | |
| Brand Name : | ADLED |
| Model Number : | ADS-Y3528-120CCT |
| Certification : | UL/CE/RoHS |
| Payment Terms : | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability : | 100000M |
| Delivery Time : | 7days |
Outdoor LED Light Strip CCT Dual Color White Addressable Cuttable Connecting 3528
Benefits of Tunable White LED Strip

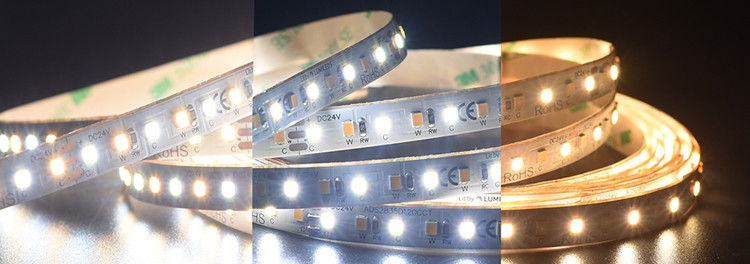

1. Dynamic Tunable White LED Light Strip
A LED strip CCT can bring you countless white light colors, in the
range of 2800K to 6500K, you can also adjust the brightness of
access LED light strip.
2. Adjustable LED Strip Lights

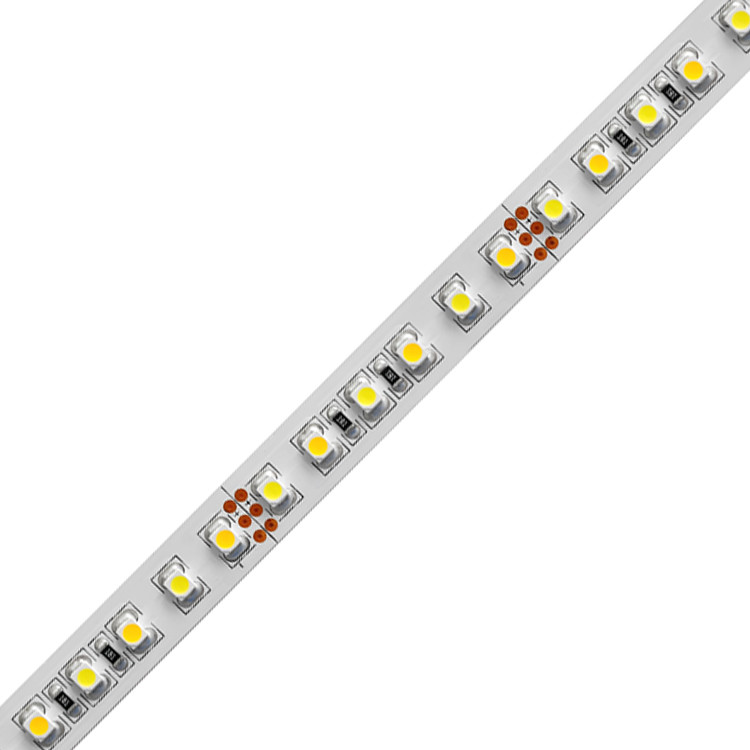

It is made of 60LEDs warm white + 60LEDs white smd 3528 LED lamps,
adjustable cheapest LED strip lights in the market.
3. Healthy life
Easy to creat a more healthy life in daily life. You can set up
white for task lighting and warm white for mood and accent
lighting, easy to diy LED strip with a 3 pin LED strip controller.
4. High Quality led strip lights cuttable
We always make IP20 & IP67 cut LED strip, all our LED strip lights
dc 12v 24v approved UL, CE, RoHS certificates. With top-tier
quality standard, our flex strip light keep a durable longer life
span.
5. Different Types of Tunable White LED Strip
A lot of different types of tunable white LED strip available, SMD
2835, SMD 5050, SMD315,SMD 3528 and COB CCT LED strip for your
choice.
24V - 10mm PCB width - SMD 2835 120LEDs/m Luminleds tunable white LED strip lights
24V - 10mm PCB width - COB 640LEDs/m tunable white LED strip lights
12V/24V - 10mm PCB width - SMD 2835 120LEDs/m tunable white LED strip lights
12V/24V - 10mm PCB width - SMD 5050 60LEDs/m tunable white LED strip lights
24V - 12mm PCB width - SMD 5050 96LEDs/m tunable white LED strip lights
12V/24V - 10mm PCB width - SMD 3528 120LEDs/m tunable white LED strip lights
24V - 10mm PCB width - SMD 315 140LEDs/m tunable white LED strip lights
Tunable White LED Strip Light Supplier
As a top 10 premium wholesale LED light strips manufacturer, all our light LED strips production strictly in accordance with quality control system.
In the past 10 years development, our huge production capacity monthly up to 2MIL Meters, we can ship out flexible LED ribbon in a quick time.
We are glad to provide full services to all brand owners, wholesalers, retailers, project contractor, distributors,etc.
What is Tunable White LED Strip?
Tunable White LED Strip also known as dual LED strip, dynamic white LED strip, dual color LED strip lights, or adjustable LED strip.
LED CCT strip normally include two types, both are adjustable color
temperature LED strip.
Type 1: One LED lamp have two chips, warm white & white chip.
Type 2: Warm white chip & white chip separately SMD on PCB in sequence.
Dynamic tunable white LED strip lights help you adjust various white colors according to your requirements, usually in a range of 2800K to 6500K color temperature.
Tunable White LED Strip Specifications:
| Model | ADS-Y3528-120CCT |
| LED type | SMD 3528 LED |
| LEDs per metre | 120 |
| Operating voltage | DC12V/24V |
| Watts per metre | 9.6W |
| Colour | CCT |
| IP rating | P20/IP65/IP67/IP68 |
| PCB width | 10mm |
| Cut points | 50mm(1.97'') For 12V; 100mm(3.94'') For 24V |
| Beam angle | 120° |
| Warranty | 3 Years |
| Certifications | UL/CE/RoHS |
| Package | 5m(16.4ft) per roll |
| Adjustable color | Tunable white controlled by LED strip controller |

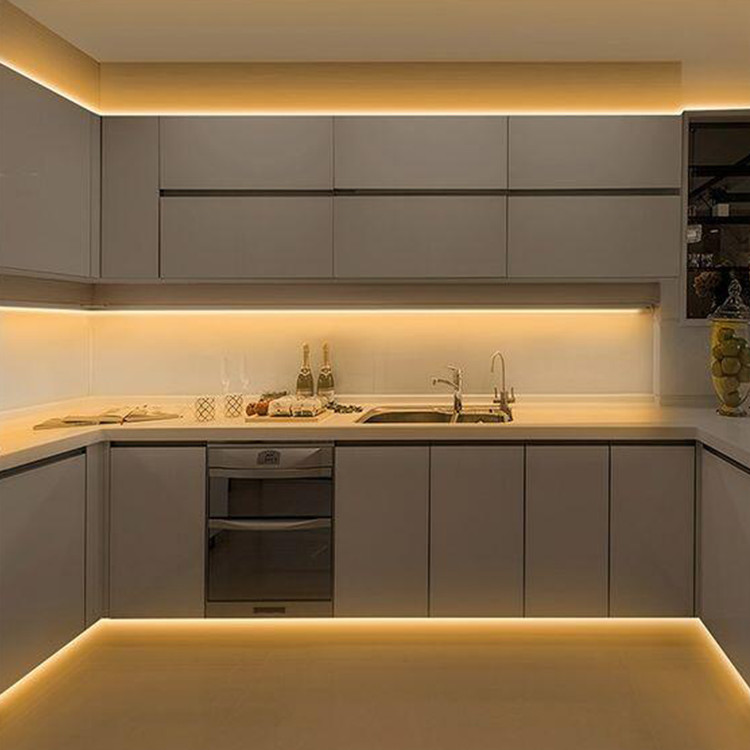

Tunable White LED Strip Application:
• Ambient Lighting • Halloween Costume Lighting
• Architectural Displays Lighting • Outdoor Accent Lighting
• Awning Lighting • Roof Lighting
• Under Toe Kicks • Wine Cabinet Lighting
• Skateboards Lighting • Stairs Lighting
• Kitchen Counter Lighting • Shelf Lighting
• Landscape Lighting • Hotel Lighting
• Gallery Lighting • Store display Lighting
• BackLighting • Parking Lighting
Tunable White LED Strip FAQ:
Q: How to conect CCT LED strip light?
Step 1: Pull out tunable white LED strip 24v from the reel
Step 2: Prepare a CCT LED light strip controller and a 24v LED
strip power supply
Step 3: Connect LED strip to controller
Step 4: Connect LED strip controller to power supply
Q: How many watts in LED strip lights?
Our Lumileds 24v tunable LED strip has power 19.2W/M, (9.6w white +
9.6w warm white).
Q: Can you make tunable white waterproof LED strip?
Yes, we can make different waterproof grade, such as silicone glue,
silicone tube, silicone sleeve for LED strip.
Q: Will flexible silicone LED strip turn yellow?
ADLED latest silicone glue LED technology with new silicone
material, our ultra slim silicone LED strip lights waterproof will
not turn yellow after using 2 years, the silicone will be more even
to creat better lighting.
|
|
